Elektron Tonverk Polyphonic Performance Sampler

Elektron Tonverk Polyphonic Performance Sampler

• General

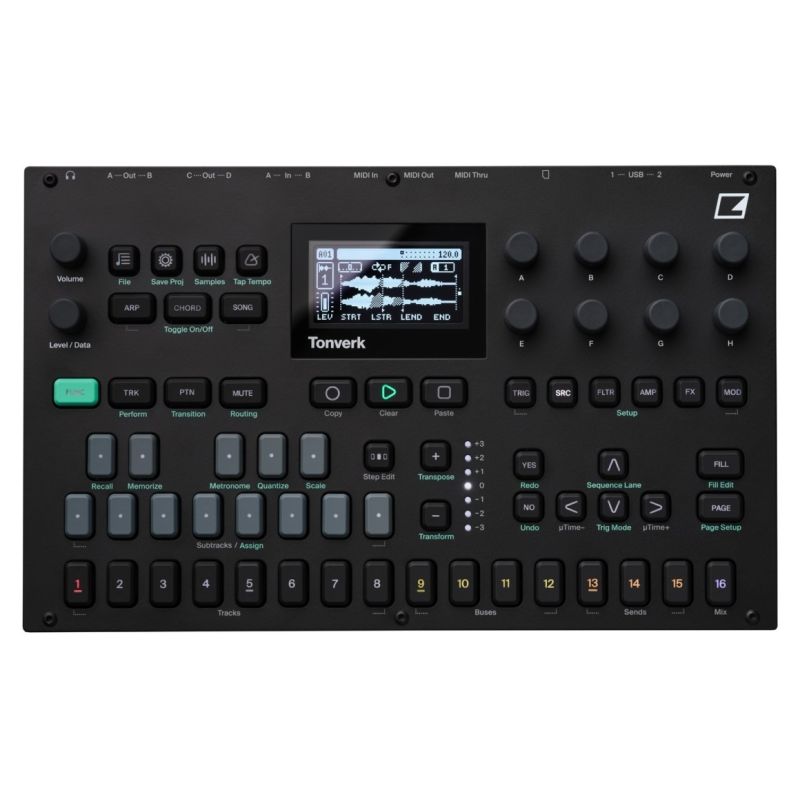

  The Elektron Tonverk is a versatile creative hub for the studio and stage: a polyphonic sampler, a flexible effects switcher, and a radical routing lab in a single device. Eight stereo audio tracks along with four bus tracks, three send effects, and a mixer track form the basis for complex signal paths, both internal and external. You can choose between four “machines” per audio track: The Single Player plays WAV samples in mono or polyphonic stereo, allowing loop points and crossfades for seamless loops. The Multi Player loads multisample-based instruments from the extensive Library—or from your own recordings, which you can create automatically with the Auto Sampler via MIDI. With Subtracks, you can transform a track into eight monophonic, multitimbral subtracks, each with its own sequencer and individual parameters. Alternatively, you can switch a track to MIDI; this option is also available on the bus tracks. There are two ways to record: the recorder for direct recordings of internal or external audio, and the aforementioned auto-sampler for convenient multisampling of your favorite sound generators.
  The modulation system is deep and specific: Two freely assignable LFOs, two FX LFOs, and a modulation envelope are available per audio track; there are two more LFOs each at the bus, send, and mix levels. Pitch bend, modulation wheel, breath control, and aftertouch can be assigned specifically per track. The sequencer offers up to 256 steps per pattern per track, operates polyphonically, and supports parameter locks, microtiming, retrigs, and trig conditions, including probabilities. Different pattern lengths and timescale multipliers per track, separate sequencer lanes, and an arpeggiator for audio and MIDI tracks open up additional creative freedom. For performance, two trig modes (tracks and velocity), a keyboard mode with 36 scales, a chord mode, and a song mode are available.

• Product specifications
  • Eight stereo audio tracks
  • All eight tracks can be used either as audio or MIDI tracks
  • Four bus tracks
  • Three send effect tracks and 1 mix track
  • Four selectable machines per audio track: Single player, multi-player sub-tracks or MIDI (also selectable on bus tracks)
  • Single Player: Polyphonic playback of individual WAV files (mono or stereo)
  • Multi Player: Loading and polyphonic playback of multisamples (multiple velocity layers per note)
  • Subtracks: Adds eight monophonic, multi-timbral subtracks to a track – each subtrack with its own sample, sequencer and individual parameter controls
  • MIDI: Converts the selected track into a MIDI track
  • Recorder: For easy audio sampling
  • Auto Sampler: Automatically creates multisamples from hardware instruments connected via MIDI
  • 1 x base width filter per track and sub-track
  • Two assignable LFOs, two assignable FX LFOs and assignable modulation envelope per audio track
  • Two assignable LFOs for each bus, send effect and mix track
  • Extensive metering options
  • MIDI track: 16-voice polyphony per step
  • 16 assignable CC controllers and 2 assignable LFOs per track
  • Two different Trig Modes, Keyboard, Chord and Song Mode
  • Polyphonic sequencer: up to 256 steps per pattern and track, individual pattern length per track, adjustable clock divider per track, parameter locks, trigger conditions and retrig, micro timing and arpeggiator per track
  • Various effects (depending on the track type)
  • 128 x 64 pixel OLED display
  • 5 GB internal sampling memory
  • Includes 64 GB SD card, PSU-5 power supply unit and USB-C cable
  • Dimensions (W x D x H): 286 x 176 x 63 mm
  • Weight: 1.85 kg
